High-Quality Hydraulic Thread Rolling Machine Manufacturer for the Architectural Hardware
Industry
Specializing in 2-axis and 3-axis thread rolling machines with 30+ years of experience
Rolls 20+ thread types
Custom machines, easy operation
Do you want to test our machine?
30% Faster Production Cycle
±0.01mm Thread Precision
50% Lower Maintenance Cost
Energy Savings Up to 35%
Customized Solutions for 50+ Materials
48h Global Emergency Response
Our Machine
As a top Chinese precision thread rolling machine manufacturer, we develop high-performance equipment for mass production of threaded workpieces. Offering turnkey solutions (machines+molds+process packages) with material-specific parameter databases (carbon steel/stainless steel/titanium alloys), we've assisted 1,200+ global enterprises in reducing threading costs by 30%. From standard models to customized solutions, we provide end-to-end technical support from equipment selection to production line optimization.

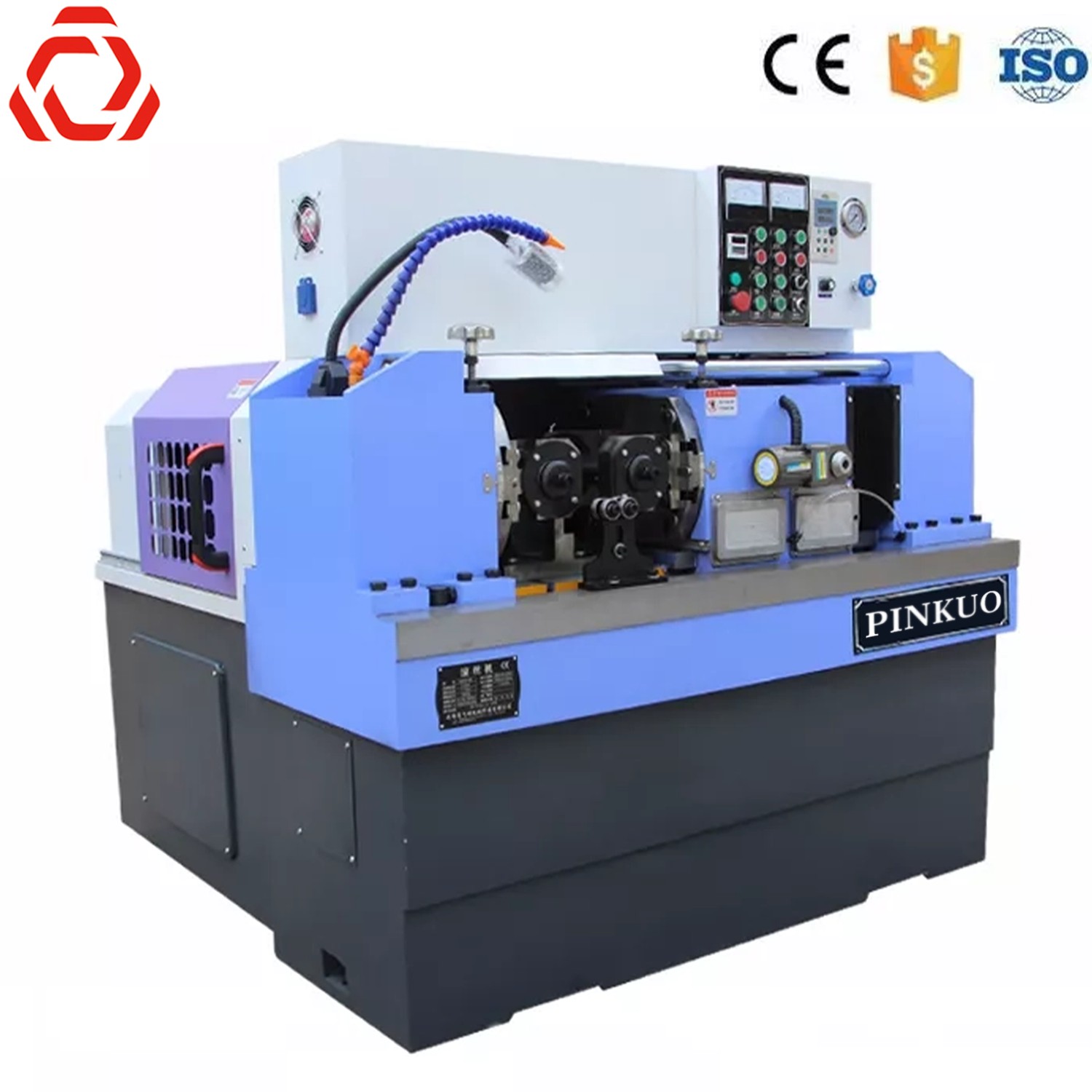

PINKUO 2-Axis Thread Rolling Machine
| Model | ZA28-20 | ZA28-35 | ZA28-63 |
| Max Rolling Pressure | 20Ton (200KN) | 26Ton (260KN) | 65Ton (650KN) |
| Axial Feed Diameter | Φ42mm | Φ64mm | Φ120mm |
| Application Thread | Ordinary Parts • Building Threading Thread • Steel Support • Trapezoidal Thread • Modular Thread | Precision & High-Strength Standard Parts • Ordinary Threads • Trapezoidal Threads • Modular Threads. | Elongation > 10% Tensile Strength < 10n/Mm² • Rolling Carbon Steels • Allloy Steels • Non-Ferrous Metals |

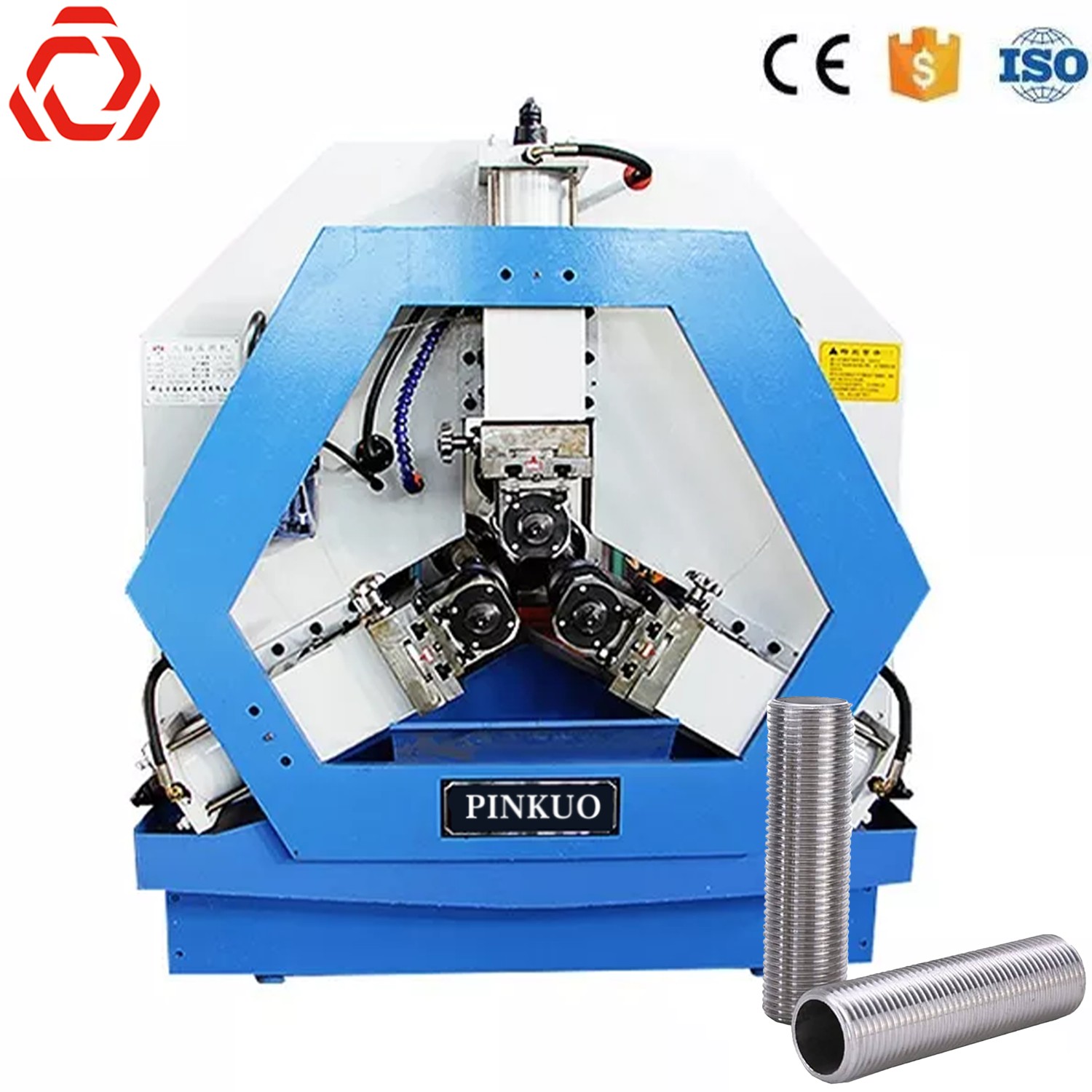

PINKUO 3-Axis Thread Rolling Machine
| Model | ZC28-6.3 | ZC28-12.5 |
Max Rolling | 20Ton (200KN) | 30Ton (300KN) |
Axial Feed | Φ20-80mm | Φ30-120mm |
| Application Thread | Suitable for rolling hollow metal tubes, thin-walled workpieces and other special-shaped workpieces. | |
PINKUO Thread Rolling Dies

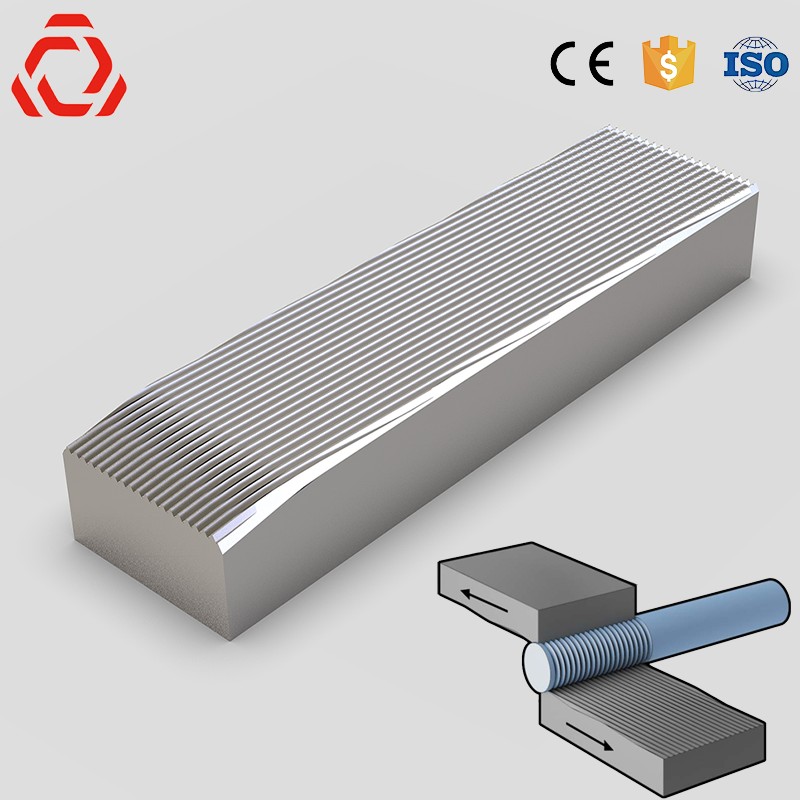

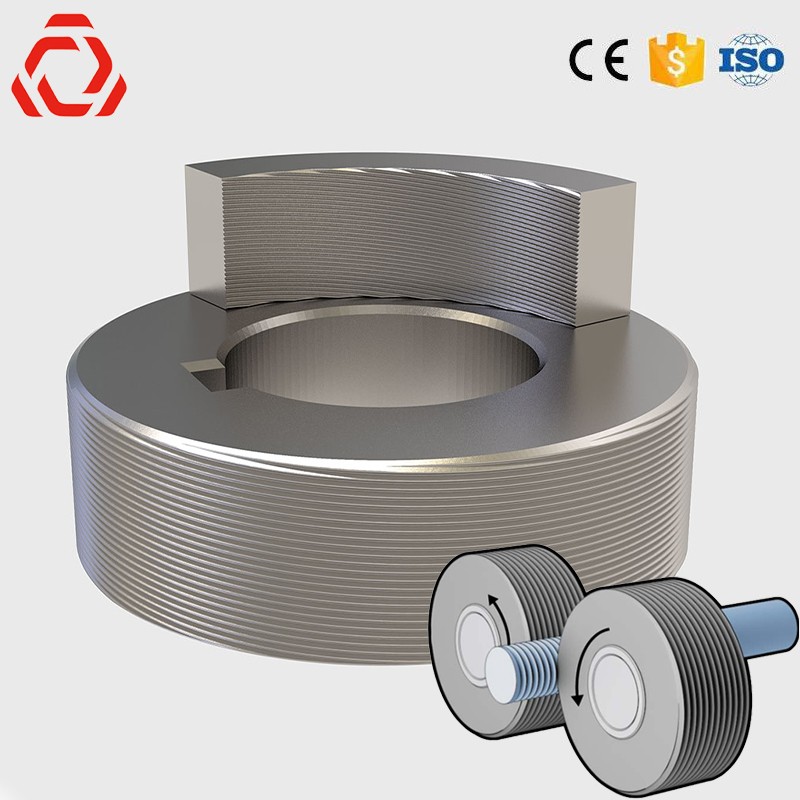

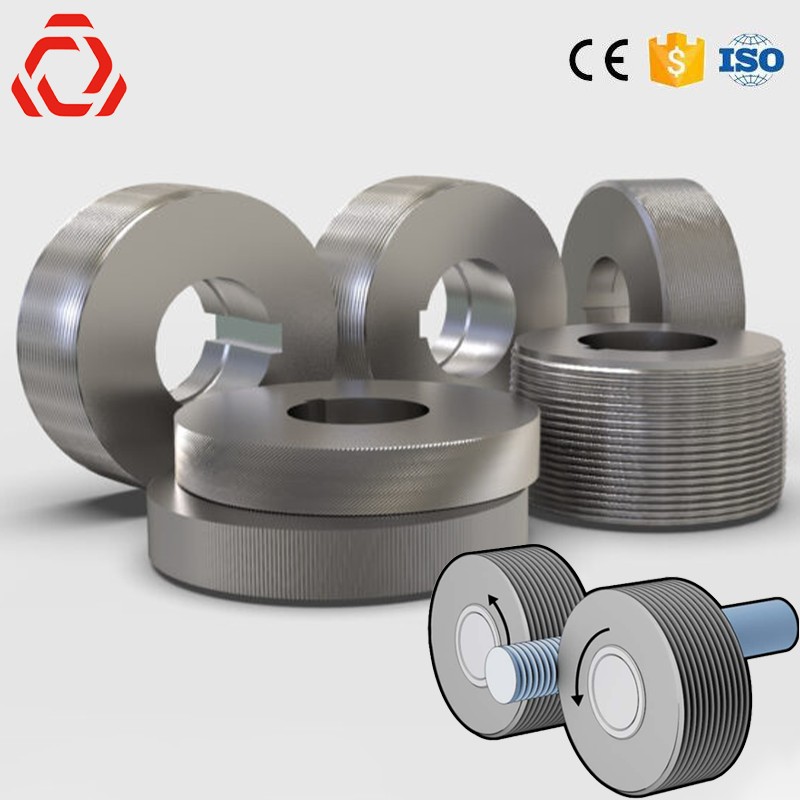

| Model | Cylindrical Dies | Circular Die for Worm Roll | Flat Dies |
| Suitable for | Precision threaded parts used, among screw manufacturers. | Processing worm rods, auto parts, mechanical parts etc. | Buried thread profile Milled thread profile |
| Material | 20 chromium molybdenum titanium | ||
| brand new, factory straight hair, smooth, burr-free, long service life | |||
| Characteristics | The die is much slower than the flat die but maintains far better run-out and excellent thread quality | Molds are divided into single-sided and double-sided according to shape, and are manufactured according to JIS level standards. | Molds are categorized into single/double-sided types per JIS standards. The forming process involves inserting workpieces between flat dies using a push knife, with threads created in a single stroke. |

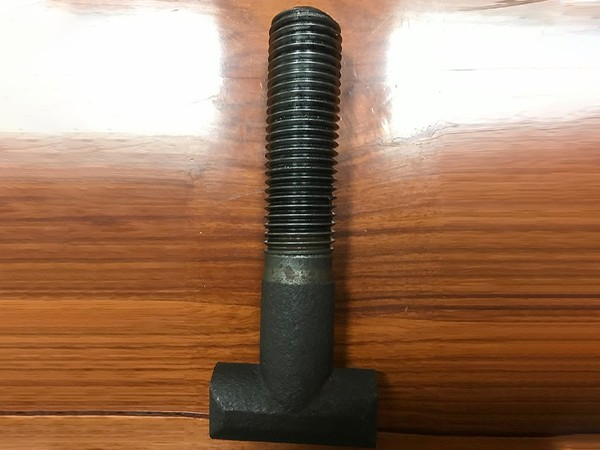

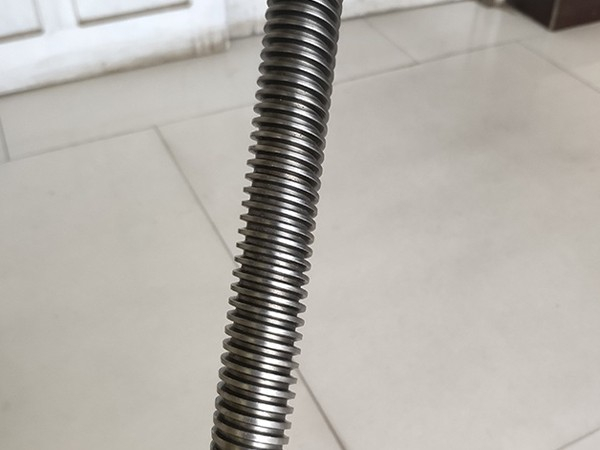

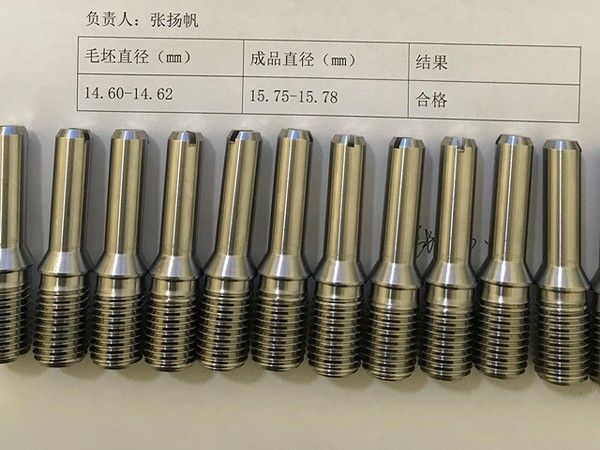

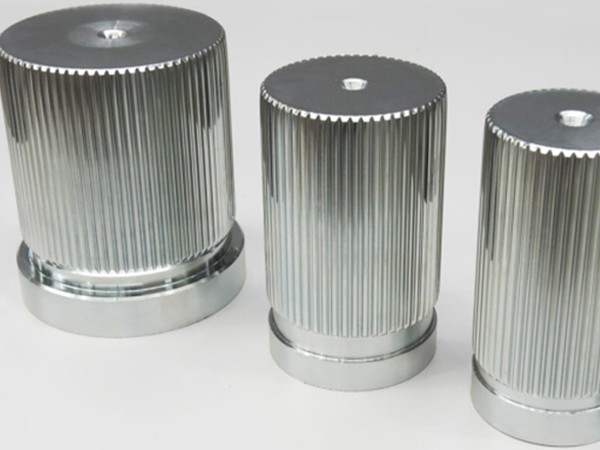

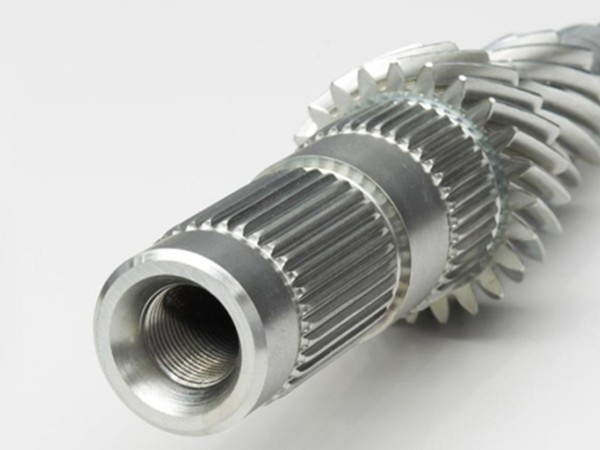

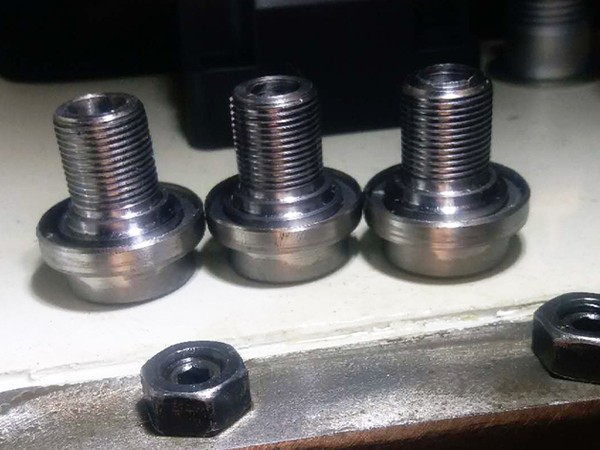

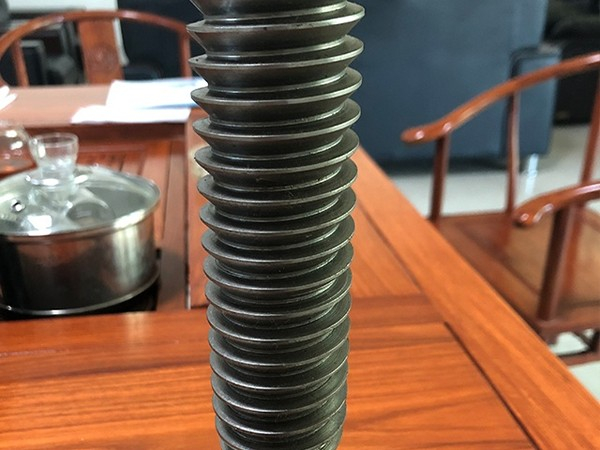

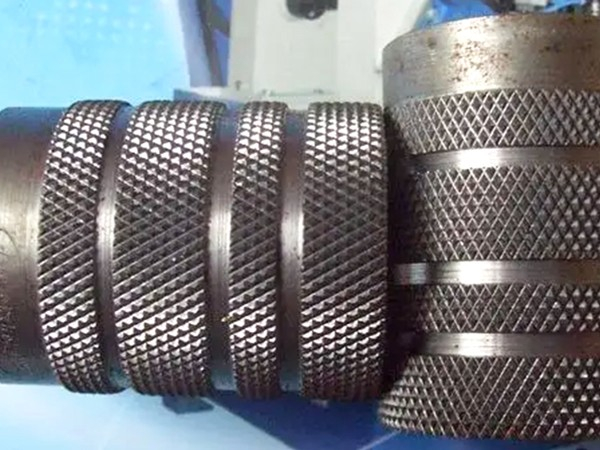

Actual Photos of Workpieces

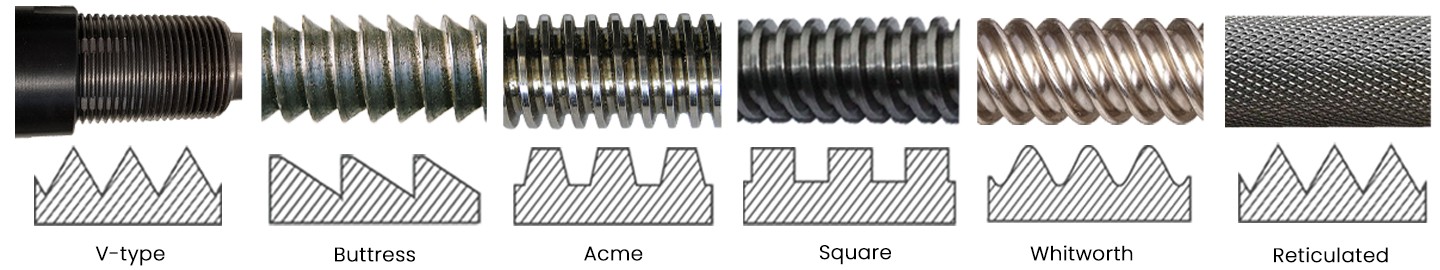

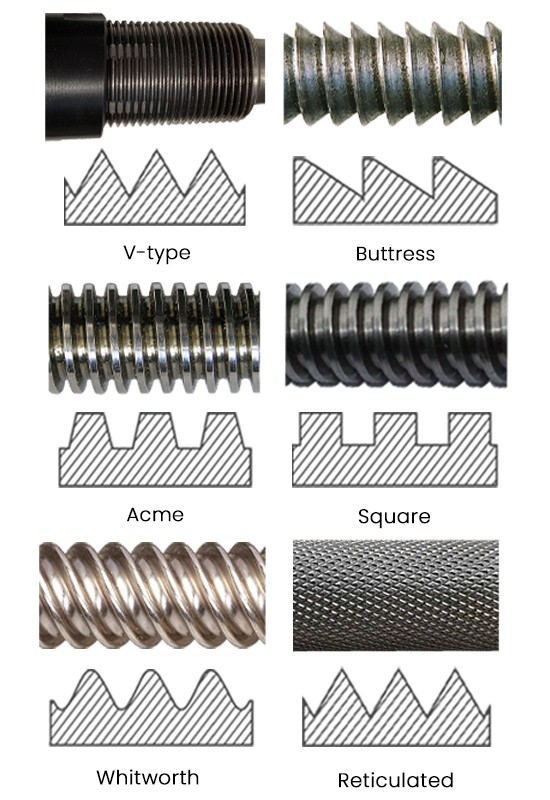

Our equipment processes Φ3-300mm diameters and 12m shafts, supporting 30+ thread standards (Metric, UNC/UNF, BSW/BSF, Tr, Buttress) and custom designs (special profiles/variable pitch/multi-start) via dynamic compensation. Industry applications include: automated bolt/threaded rod/anchor bolt production (fasteners), dual-head systems for extra-long hydraulic rods (construction), multi-station connecting rod forming (automotive), and titanium alloy corrosion-resistant thread machining (energy).
How can we assist you?
First Class Technical Consulting Service. Guaranteed reply in 24 hours
Why Choose Us
Tailored for construction engineering & hardware industry clients, our thread rolling machines deliver targeted solutions for construction material dealers transitioning to self-production and hardware distributors expanding manufacturing capabilities. With industry-specific innovations in durability, operational efficiency, and ROI optimization, we empower clients to dominate local markets while slashing production costs.
Key Advantages for Construction Engineering Clients
1. Reinforced Rebar Processing Capacity
• Specialized in Φ16-Φ40mm steel bar straight thread processing
• Daily throughput 8-10 tons, meeting high-rise/bridge project demands
2. 30% Cost Reduction Guarantee
• 50% material savings vs traditional welding/tapping methods
• Die lifespan exceeds 800,000 cycles, unit cost as low as $0.004
3. Mobile Production for Jobsite Flexibility
• Compact footprint of just 2㎡, operates on standard 220V power
• IP54-rated dust/waterproof housing withstands harsh site conditions
1. Reinforced Rebar Processing Capacity
• Specialized in Φ16-Φ40mm steel bar straight thread processing
• Daily throughput 8-10 tons, meeting high-rise/bridge project demands
2. 30% Cost Reduction Guarantee
• 50% material savings vs traditional welding/tapping methods
• Die lifespan exceeds 800,000 cycles, unit cost as low as $0.004
3. Mobile Production for Jobsite Flexibility
• Compact footprint of just 2㎡, operates on standard 220V power
• IP54-rated dust/waterproof housing withstands harsh site conditions
Competitive Edge for Hardware Industry Transition
1. Flexible Small-Batch Production
• 5-minute die change system handles 200+ hardware components
• CNC memory stores 100 parameter sets for zero-loss product switching
1. Flexible Small-Batch Production
• 5-minute die change system handles 200+ hardware components
• CNC memory stores 100 parameter sets for zero-loss product switching
2. 25% Material Utilization Boost
• Near-zero material waste (≤3% loss rate for stainless steel/alloys)
3. Risk-Free Transition Support
• Free Hardware Manufacturing Toolkit: Material selection guidelines & mold design templates
• Near-zero material waste (≤3% loss rate for stainless steel/alloys)
3. Risk-Free Transition Support
• Free Hardware Manufacturing Toolkit: Material selection guidelines & mold design templates
Visit PINKUO
Every year, many customers from all over the world come to the YGMTOOLS factory to visit and test. Countries like Russia, Spain, Chile, Sri Lanka, United Kingdom, United States, Pakistan, Vietnam, Philippines, etc. Free quote online.
-
Iran customers visit the factory and purchased mining bolt assembly line. -

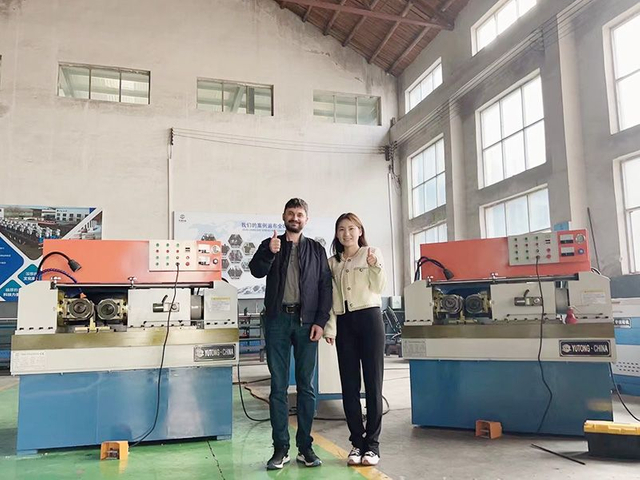

Russia customer, purchased 2 Z28-250 thread rolling machines. -
Indonesia customers visited the factory and purchased diameter reducing machine. -
Algeria customer visited the factory and purchased Threaded rod production line. -
2023 Canton Fair -
2023 Canton Fair -
International Fastener Exhibition-1 -

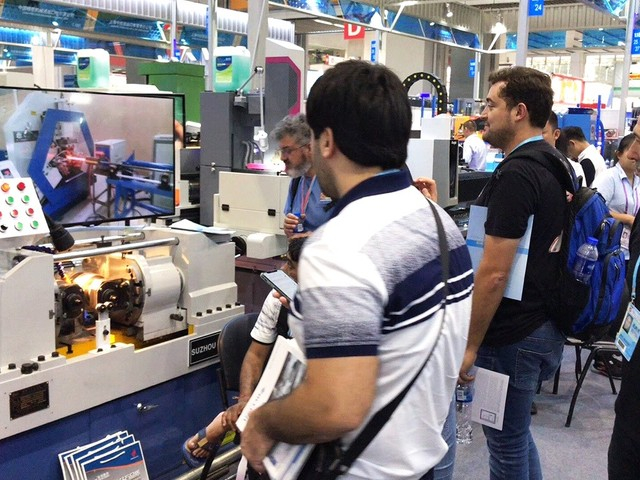

International Fastener Exhibition-2 -

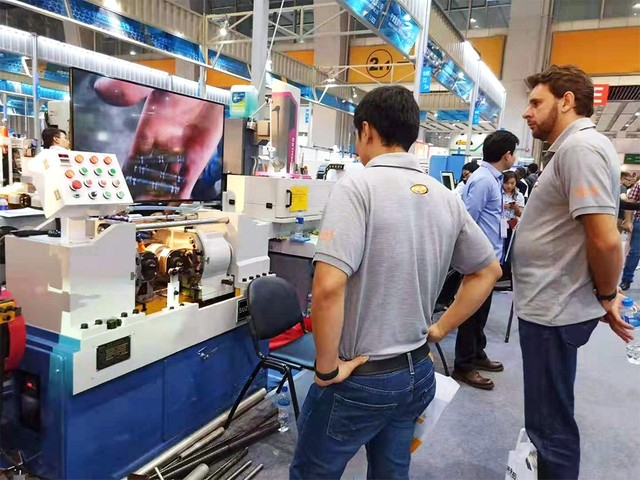

International Fastener Exhibition-3 -

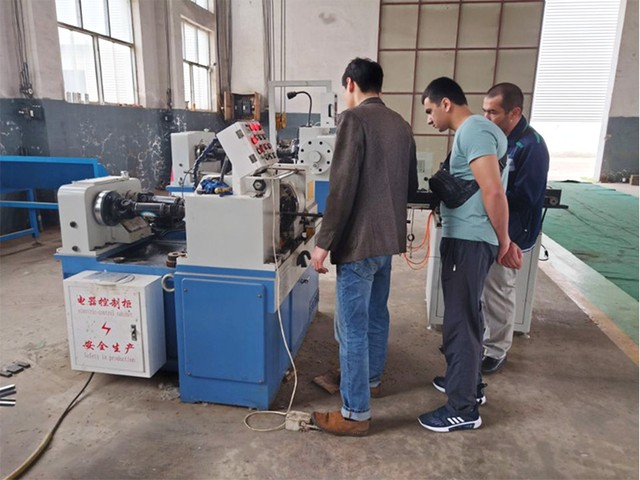

Russian customers came to the factory to check out the two-axis thread rolling machine -

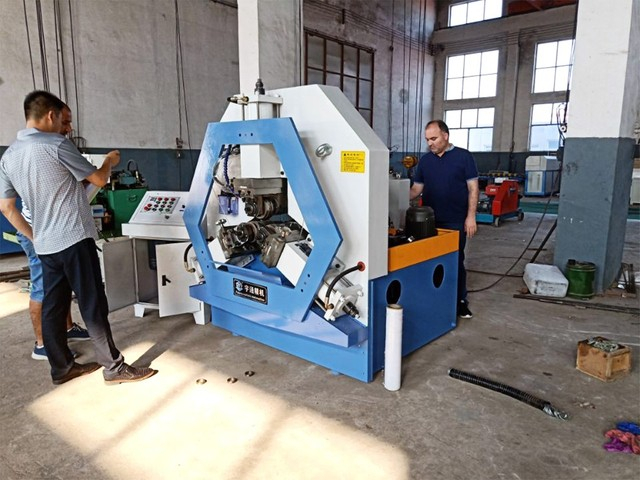

Turkish customers came to the factory to check out the three-axis thread rolling machine -
Factory photos
Other Products

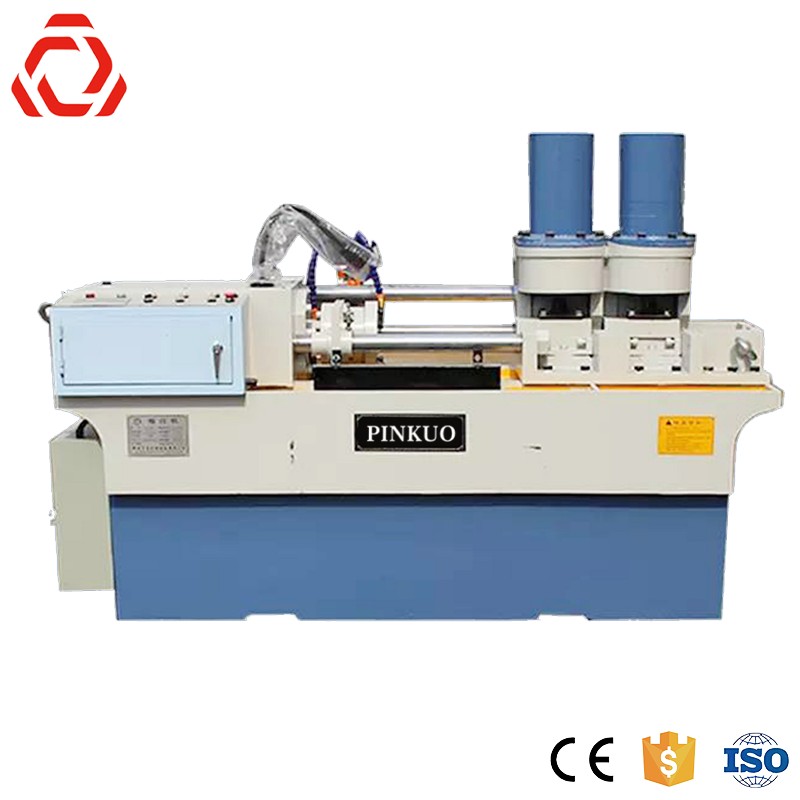

Diameter reducing machine

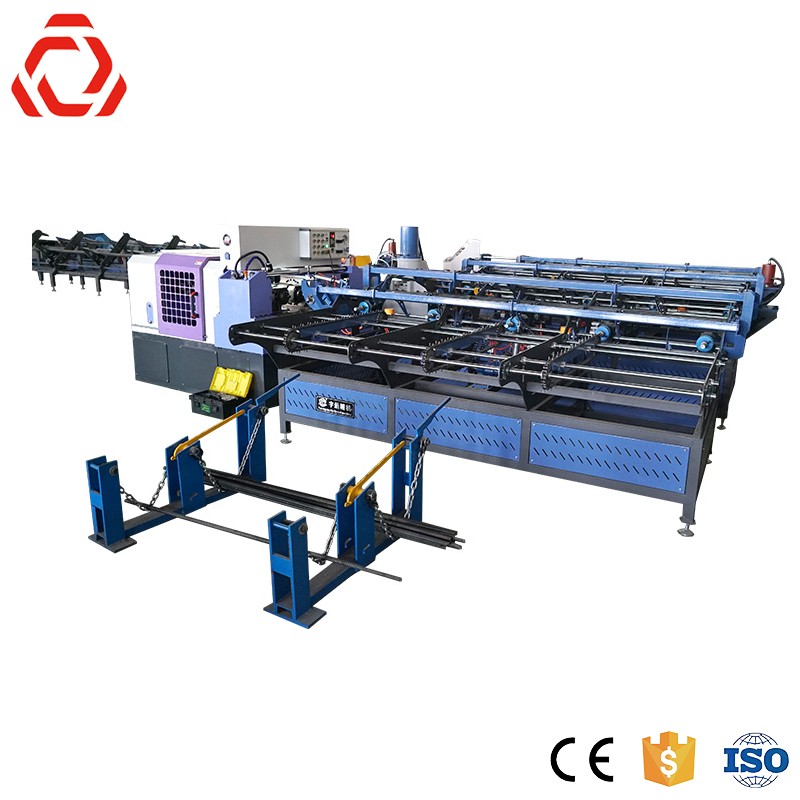

Bolts And Anchor Bolt Production Line

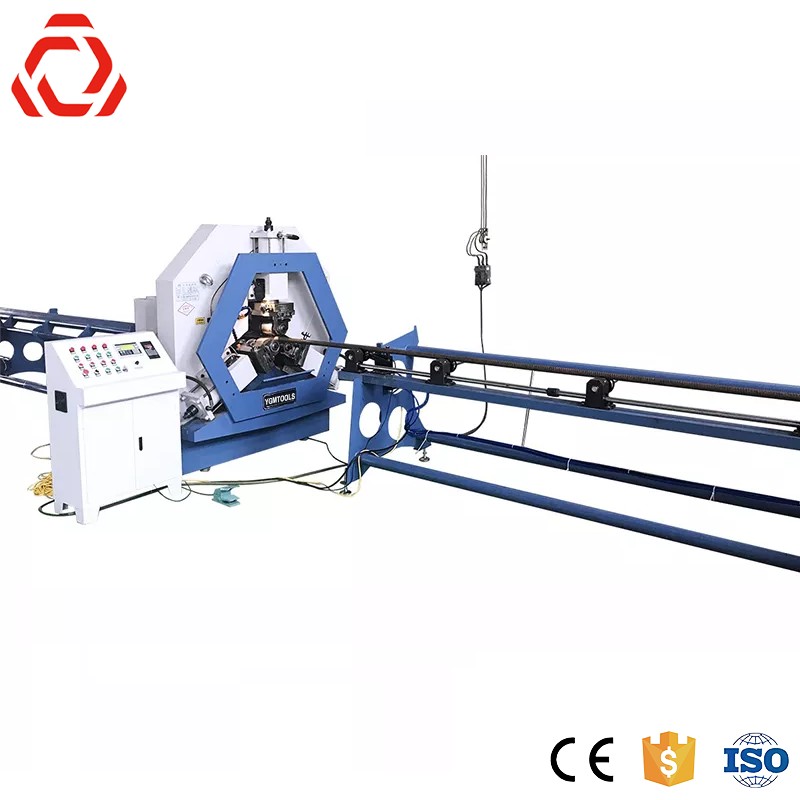

Hollow Anchor Bolt Production Line
FAQ
-
How will you resolve issues we encounter while using the machine?
Provide video/picture documentation of the issue. Our engineers will diagnose and propose solutions, with on-site technician dispatch if required. -
Can you provide trial processing services?
We offer sample processing with video verification to remotely demonstrate machining processes.We can also send you samples -
Can existing production lines be upgraded?
Our modular systems support retrofitting, such as:Adding auto-feeding conveyorsIntegrating vision inspection modulesInstalling collectorsCurrent upgraded lines include: mining anchor rod lines, hollow anchor rod lines, and lead screw production lines. -
Do you provide on-site support?
Global technical services include:48-hour remote diagnosticsTechnician dispatch for installation and machine calibration in your country -
Is the equipment certified?
YGMTOOLS thread rolling machines hold international certifications including CE, ISO 9001, and GB/T 19001.
-
What materials can your machines process?
Optimized for carbon steel, stainless steel, and titanium alloys (TC4/GR5, etc.). Our material-specific parameter databases enable one-click setup, reducing trial-and-error time by 60%. -
Can you produce non-standard threads?
Yes. Our dynamic compensation system handles special profiles (e.g., ACME/stub Acme), variable pitch threads (3°-45°), and multi-start threads (up to 12 starts), achieving ±0.02mm pitch accuracy. -
How long is the delivery time?
Standard models ship in 15 working days. Custom solutions require 30-45 days, including mold matching and process validation. -
Do operators require specialized training?
Featuring intuitive touchscreen controls, our machines are easy to operate. We provide complete user manuals, instructional videos, and 24/7 online advisory support to resolve issues promptly.
