Z28-250
YTMTOOLS

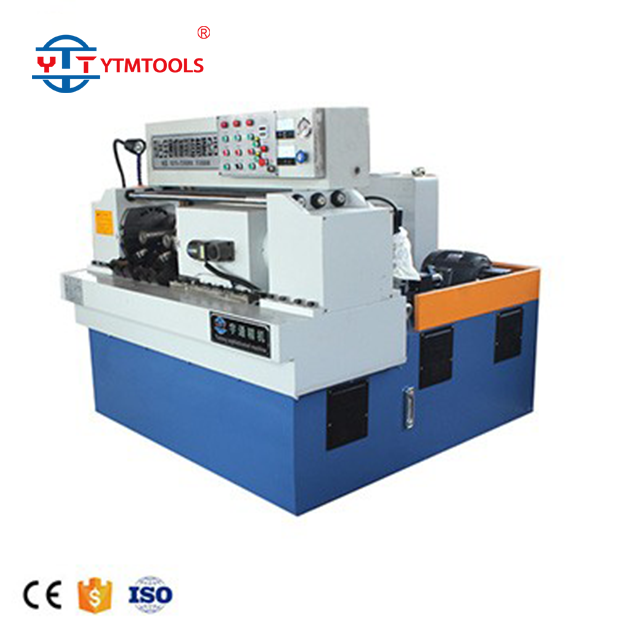

YTMTOOLS Thread Rolling Machine: Bulgaria Thread Rollers
(Please Contact Us Get Free Quote Now)
Product Description
YTMTOOLS hydraulic thread rolling machine has various models, suitable for processing engineering threads such as scaffolding, auto parts threads, mechanical parts and other cold-rolled thread processing. The specifications of the thread rolling machine can be customized. Factory direct shipment.
We are a wire rolling machine manufacturer from China
Product Parameters
| Max rolling pressure | 260KN | Spindle speed | 16,26,38,55,90(r/min) |
| Rolling material diameter | 6-90mm | Active power | 11kw-6 |
| Outer roller diameter | 210mm | Hydraulic power | 3.75kw |
| Inner roller diameter | 75mm | Cooling power | 125w |
| Max thickness of roller | 120mm | Length | Unlimited |
| Spindle center distance | 150-300mm | Dimensions | 2450*1750*1670mm |
| Axis tilt angle | ±15° | Weight | 3500kg/3700kg |
| Thread pitch | ≤10mm | Dimensions | 2460*1760*1690mm |
Machining Parts
Application
Fastenings Manufacturers
Automotive Components manufacturers
Construction Contractors
Machinery Distributors
Machine Details
Control Panel
synchronous drive shaft system
Pure Copper Motor
Thread rolling machine Thread Rollers
Machinery Exhibitions
Participate in China International Machinery Industry Expo, arouse the interest of the majority of customers, there are professional personnel responsible for answering questions.
Visit Ytmtools
Every year, many customers from all over the world come to the YTMTools factory to visit and test. Countries like Russia, Spain, Chile, Sri Lanka, United Kingdom, United States, Pakistan, Vietnam, Philippines, etc.
Chilean customers visited the factory andpurchased 3 Z28-200 thread rolling machines.
Visit the Argentine customer who is famous for our products and buy the Z28-500 thread rolling machine
Pakistani customers visit the factory and become our distributors, selling YTMTOOLS thread rolling machines locally
The American customer visited the factory, approved our products, and purchased the Z28-500 hydraulic thread rolling machine.
The Australian customers visited the factory, personally tested the Z28-200 plus automatic feeding system, and purchased a set of equipment on the spot.
Friends from Sri Lanka, trained on-site by technicians with more than 20 years of experience, and purchased 2 Z28-200 hydraulic thread rolling machines.
ABOUT YTMTOOLS
YTMTools Hydraulics Thread Rolling Machines has many international quality certifications, such as CE, ISO9001, GB/T19001, etc.
Quality Certificate
YTMTOOLS specializing in manufacturing machinery and equipment such as hydraulic thread rolling machine for more than 20 years.
