PRODUCT DETAIL

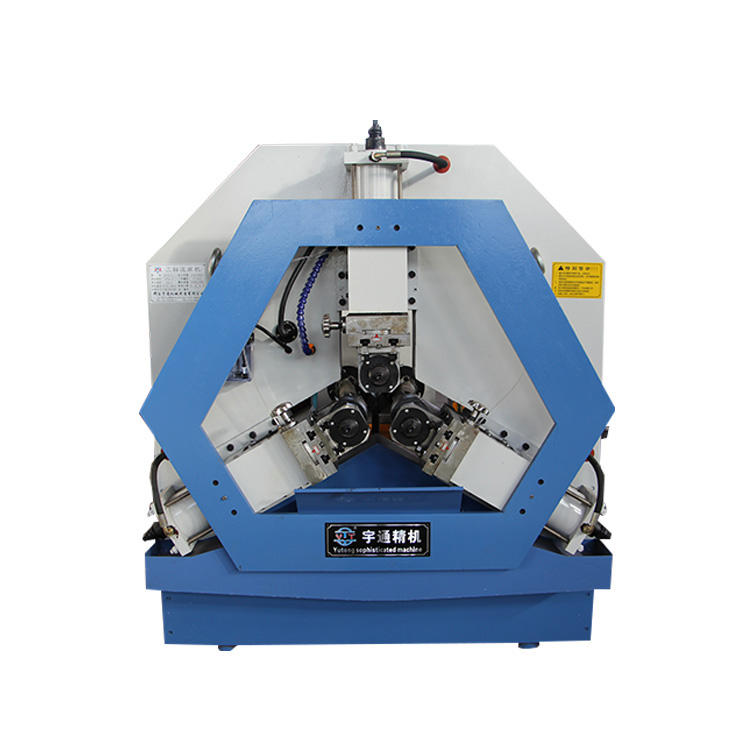

Rottery Thread Rolling

Name: Rottery Thread Rolling
Brand: YTMTOOLS
Rating: 5.0 (97 reviews)

This machine is mainly used for rolling various precision external thread, high strength standard parts, including ordinary thread, trapezoid thread and module thread.


Availability:



Inquire

Model:
ZC28-6.3
Brand:
YTMTOOLS

YTMTOOLS Thread Rolling Machine: Rottery Thread Rolling

(Please Contact Us Get Free Quote Now)

Product Description

YTMTOOLS hydraulic thread rolling machine has various models, suitable for processing engineering threads such as scaffolding, auto parts threads, mechanical parts and other cold-rolled thread processing. The specifications of the thread rolling machine can be customized. Factory direct shipment.

Product Parameters

Rottery Thread Rolling-YTMTOOLS ZC28-12.5

With our Thread Rolling Machine, threads, splines or molets are produced more quickly than during CNC machining. All of our machines fast and precise thru-feed operations.

Max roll pressure	300KN	Workpiece thickness	Less than 2mm
Max rolling diameter	Φ30-Φ120mm	length	Unlimited
Max diameter of rollers	Φ120-Φ210mm	Hydraulic Power	3.175kw
Inner diameter of roller	Φ75mm	Active Power	11kw-6
Max thickness of rollers	Φ120mm	Cooling power	125w
Axis tilt angle	±3°	Total mass	3900kg±50kg
Activities spindle feed rate	20mm/s	Dimensions	2500×1500×2100mm

Machining Parts

2-Rolls Machining Parts

Rottery Thread Rolling-Thick-lead-screw-640-640

Rottery Thread Rolling-Scaffolding-thread-head-640-640

Rottery Thread Rolling-Scaffolding-top-support-640-640

Rottery Thread Rolling-Scaffolding-Thread-Fittings1-640-640

Rottery Thread Rolling-Thread-Rolling-Parts-Display-640-640

Rottery Thread Rolling-Thread-Rolling-Parts-Display-640-640 (1)

Rottery Thread Rolling-Thread-Rolling-Parts-Display-640-640 (2)

Rottery Thread Rolling-Thread-Rolling-Parts-Display-640-640 (3)

3-Rolls Machining Parts

Rottery Thread Rolling-3-Rolls Machining Parts (2)

Rottery Thread Rolling-3-Rolls Machining Parts (3)

Application

Fastenings Manufacturers

Automotive Components manufacturers

Construction Contractors

Machinery Distributors

Machine Details

Control Panel

The main system of thread rolling machine, digitally setting the precise size of the processed parts, and expert training on the whole operation.

synchronous drive shaft system

The 2 axis rotates synchronously and in the same direction, and the accuracy of the synchronization determines the accuracy of the Rottery Thread Rolling.

Pure Copper Motor

Pure copper motors are more than 5 times the service life of ordinary motors, with stable electrical conductivity, which is the biggest foundation for hydraulic stability.

Thread rolling machine Thread Rollers

Precision thread rolling wheel, according to the workpiece professional recommended size, support customization.

Quality Certificate

YTMTools Hydraulics Thread Rolling Machines has many international quality certifications, such as CE, ISO9001, GB/T19001, etc.

Rottery Thread Rolling-certificate1-640-640

Rottery Thread Rolling-certificate2-640-640

Rottery Thread Rolling-certificate3-640-640

Machinery Exhibitions

Participate in China International Machinery Industry Expo, arouse the interest of the majority of customers, there are professional personnel responsible for answering questions.

Visit Ytmtools

Every year, many customers from all over the world come to the YTMTools factory to visit and test. Countries like Russia, Spain, Chile, Sri Lanka, United Kingdom, United States, Pakistan, Vietnam, Philippines, etc.

Rottery Thread Rolling-Chilean customers

Chilean customers visited the factory andpurchased 3 Z28-200 thread rolling machines.

Rottery Thread Rolling-Argentine customer

Visit the Argentine customer who is famous for our products and buy the Z28-500 thread rolling machine

Rottery Thread Rolling-Pakistani customers

Pakistani customers visit the factory and become our distributors, selling YTMTOOLS thread rolling machines locally

Rottery Thread Rolling-American customer

The American customer visited the factory, approved our products, and purchased the Z28-500 hydraulic thread rolling machine.

Rottery Thread Rolling-Australian customers

The Australian customers visited the factory, personally tested the Z28-200 plus automatic feeding system, and purchased a set of equipment on the spot.

Friends from Sri Lanka, trained on-site by technicians with more than 20 years of experience, and purchased 2 Z28-200 hydraulic thread rolling machines.
