Thread Rolling Machine for Sale South Africa

Thread Rolling Machine for Sale South Africa

We not only offer basic equipments,
But we also supply tailor made designs for problem screw & thread requirements.
Our Hydraulic Thread Rolling Machine and Thread Rolling Machine are proving the constant progress made in modern technology.
Our flat die thread rolling machines allow the production of large & small batches of all kinds of threads that can be cold formed , in the most economical way.


Availability:



Inquire

Model:
Z28-150
Brand:
YTMTOOLS

Product Description

Thread rolling machine

DIameter rolling of material:6-50mm ,Mainly used for rolling various types of building wall-through wire, top drag, trapezoidal thread and modular threaded workpiece.

Diameter :6-110mm,Mainly used for rolling various large trapezoidal threads, modular threads and high strength standard parts.

Z28-150 Thread rolling machine

Max roling pressure	180KN
Rolling spline range-Radial feed	6-50mm
Rolling spline range-Axial feed	6-42mm
Rolling die range-Max outer diameter	120-170mm
Rolling die range-Aperture	54mm
Rolling die range-Max width	100mm
Main axis rotation	36, 47. 60, 78 ( r/min)
Main axis inclination	±5°
Dimensions(L x Wx H)	1600X1550X1445mm
Weight	1800kg*50kg

Z28-200 Thread rolling machine

Max roling pressure	200KN
Rolling spline range-Radial feed	60mm
Rolling spline range-Axial feed	52mm
Rolling die range-Max outer diameter	210mm
Rolling die range-Aperture	75mm
Rolling die range-Max width	120mm
Main axis rotation	16, 26. 38. 55. 90 (r/min )
Main axis inclination	±12°
Dimensions(Lx Wx H)	1700x1850X1550mm
Weight	2300kg±50kg

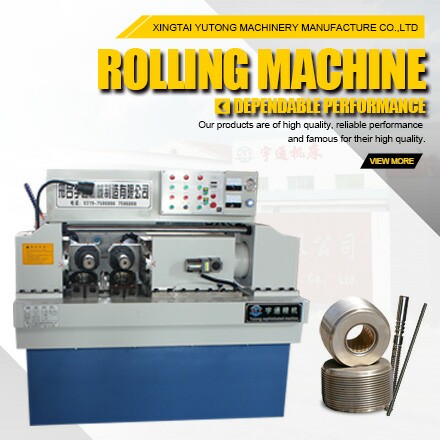

Z28-215 Thread rolling machine (2)

Max roling pressure	230KN
Rolling spline range-Radial feed	80mm
Rolling spline range-Axial feed	72mm
Rolling die range· .Max outer diameter	220mm
Rolling die range-Aperture	75mm
Rolling die range-Max width	150mm
Main axis rotation	20.25. 41. 51. 64(r/min)
Main axis inclination	±10°
Dimensions(L xWx H)	2450x1780x1670mm
Weight	28ookg±50kg

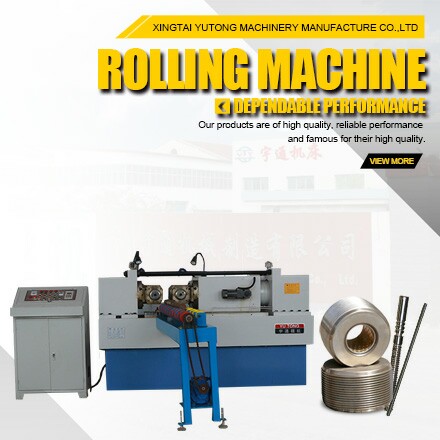

Z28-500 Thread rolling machine

Max roling pressure	650KN
Rolling spline range-Radial feed	120mm
Rolling spline range-Axial feed	120mm
Rolling die range-Max outer diameter	290mm
Rolling die range-Aperture	100mm
Rolling die range-Max width	200mm
Main axis rotation	16, 26. 38. 55. 9o (r/min)
Main axis inclination	±8°
Dimensions(L x Wx H)	2500X2700X1500mm
Weight	6100*50kg
