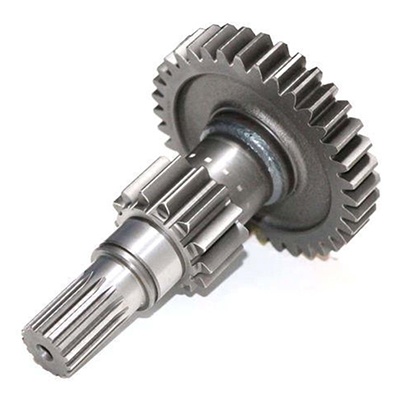

Application of Thread Rolling Machine in Automotive Gearbox and Transmission System Components

Thread rolling machines play a vital role in the production of various gearbox and transmission system components in the automotive industry. These machines are used to create precise and robust threads on different parts, ensuring reliable assembly and optimal performance of the transmission system.

Here are some key applications of thread rolling machines in automotive gearbox and transmission components:

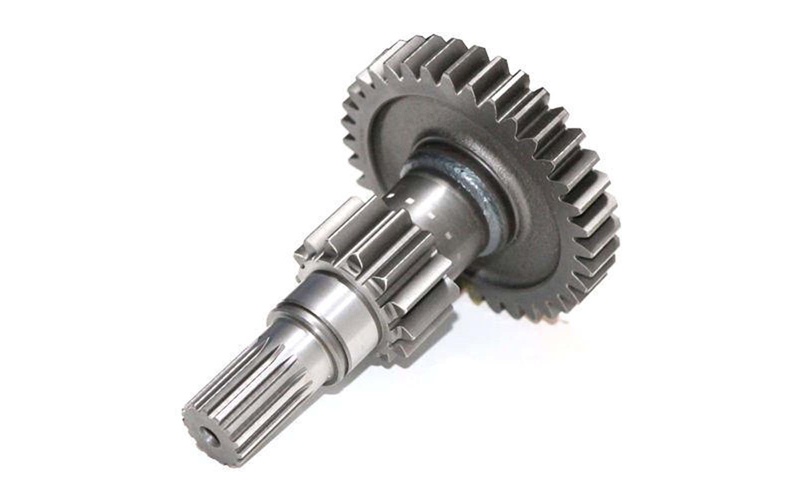

Gear Shafts:

Gear shafts are critical components of automotive gearboxes and transmission systems, transmitting torque and power between gears. Thread rolling machines are used to thread gear shafts, enabling them to connect properly to gears, bearings, and other components such as synchronizers.

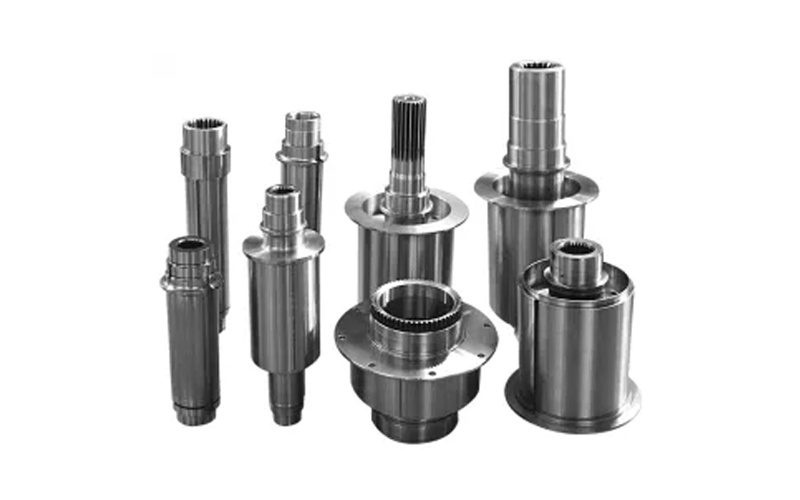

Splined Shafts:

Splined shafts are used in transmission systems to transmit rotational power while allowing some axial movement. Thread rolling is employed to produce precision splined profiles with threads, ensuring precise engagement and reliable power transmission.

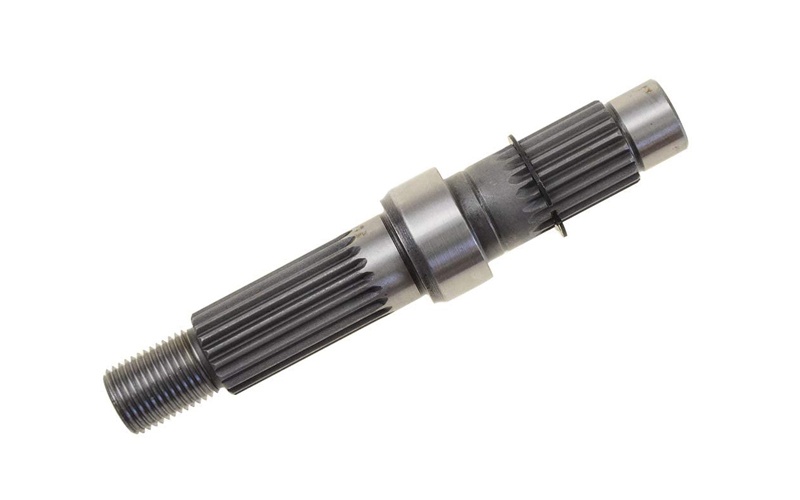

Output Shafts:

Output shafts transfer power from the gearbox to the transmission system and wheels. Thread rolling is used to thread output shafts, allowing secure connections to components like flanges, couplings, and constant velocity joints (CVJs).

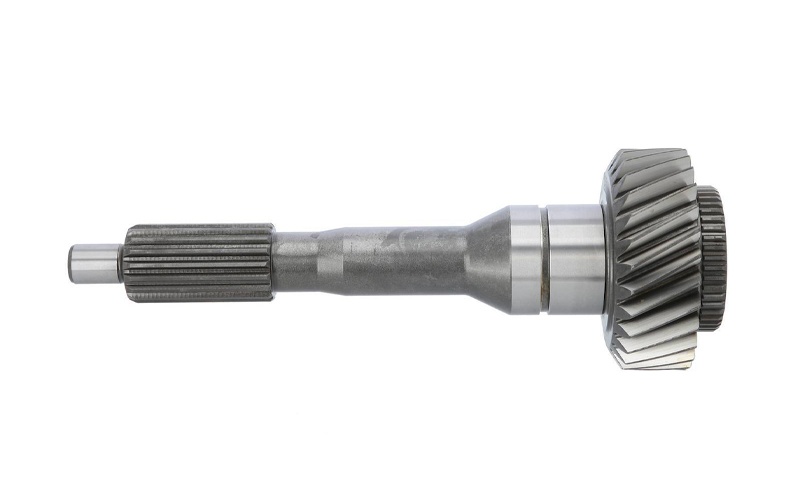

Input Shafts:

Input shafts connect the engine to the gearbox, transmitting engine power to the transmission. Thread rolling machines are used to thread input shafts, facilitating the connection to components like clutch plates or torque converters.

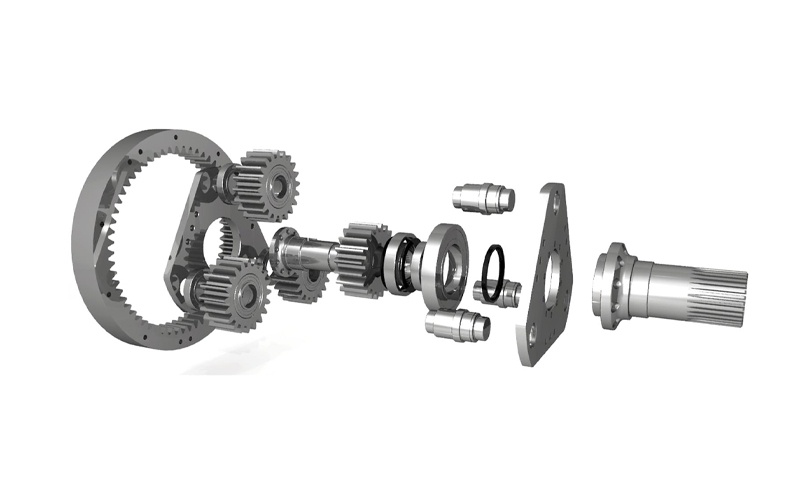

Transmission Gears:

Thread rolling machines are employed to thread teeth or gear hubs, ensuring these gears can be securely mounted to transmission shafts. Threads on gear hubs are crucial for precise positioning and alignment within the gearbox assembly.

Shift Forks:

Shift forks are critical for gear engagement and shifting in both manual and automatic transmissions. Thread rolling is used to create threads on the ends of shift forks, which are then connected to shift rails or synchronizer components.

Gearbox Housings:

Thread rolling machines are used to thread gearbox housing components for proper assembly and connection of various parts such as covers, plugs, and brackets.

Torque Converter Components:

Thread rolling machines are employed to thread various torque converter components such as turbine hubs, stators, and pump hubs, ensuring precise assembly and connection.

Transmission Seal Components:

Threaded connections on seal components, such as gearbox pan bolts and drain plugs, are created using thread rolling machines to ensure leak-free performance and ease of maintenance.

Advantages of thread rolling machine:

1. Excellent strength and durability:

Thread rolling machines produce threads of greater strength and durability than other thread forming methods. The rolling process displaces rather than removes material, resulting in improved fatigue resistance and a more reliable thread form.

2. Cost-effectiveness:

Thread rolling offers significant cost advantages over other methods such as thread cutting or grinding. The rolling process is faster, requires less energy, and produces minimal waste. Therefore, it can reduce production costs and improve overall efficiency.

3. Improved surface finish:

Thread rolling produces smoother, more precise threads for superior surface finish. This is especially important in applications where the threads must fit tightly or where aesthetics are important.

4. Extend tool life:

Unlike cutting or grinding methods, which subject the tool to severe wear, thread rolling places less stress on the tool. As a result, thread rolling tools last longer, reducing tool replacement costs and downtime.

5. Consistent thread quality:

Thread rolling machines provide highly consistent thread quality throughout the production process. The mechanical nature of the rolling process reduces the possibility of human error, resulting in uniform and high-quality threads every cycle.

How to order a suitable thread rolling machine?

The application of thread rolling machines in the production of gearbox and transmission components ensures consistent thread quality, enhanced durability, and reliable connections. The resulting high precision and strength contribute to the smooth operation and overall performance of automotive transmission systems. If you have any questions about selecting or using thread rolling machines, please feel free to contact us.
